The following gallery presents just a few examples of the many powerful methods in AQTESOLV that you may apply in the interpretation of pumping tests, slug tests, constant-head tests and more.

Pumping tests in nonleaky confined aquifers…

combined analysis of drawdown and recovery
analysis of recovery data with Agarwal method
sinusoidal variable-rate test
multiple observation wells in channel aquifer
single-well test with wellbore storage
forward (predictive) solution with intermittent (cyclic) pumping

Pumping tests in leaky confined aquifers…

multiple observation wells (incompressible aquitard)
distance-drawdown analysis (incompressible aquitard)

Pumping tests in unconfined (phreatic) aquifers…

delayed yield (delayed gravity response)
saturated/unsaturated flow
drawdown and recovery analysis with multiple pumping wells
delayed yield with multiple observation wells
delayed yield with finite-diameter pumping well

Pumping tests in fractured aquifers…

multiple observation wells in double-porosity aquifer

Slug tests…

overdamped multi-well slug test
underdamped (oscillatory) slug test
well screened across water table

Constant-head tests…

discharge analysis in nonleaky confined aquifer
recovery analysis in leaky confined aquifer

Groundwater mounding simulation…

groundwater mound beneath rectangular recharge area

Click on any image below to view gallery as a slide show.

Pumping Tests in Nonleaky Confined Aquifers

Combined analysis of drawdown and recovery data using Theis (1935) solution — Combined analysis of drawdown and recovery data from a constant-rate pumping test in a nonleaky confined aquifer using Theis (1935) type-curve solution (data from USBR 1995).

Agarwal recovery method using Theis (1935) solution — Analysis of data from recovery test with Agarwal method using Theis (1935) type-curve solution (data from USBR 1995).

Analysis of sinusoidal pumping test — Displacement measured during a sinusoidal variable-rate pumping test in which the rate varied through several cycles of extraction and injection (Rasmussen et al. 2003).

Analysis of multi-well pumping test in channel aquifer (strip aquifer) using AQTESOLV's automatic image well generation — Analysis of drawdown measured in pumped well and three observation wells during a constant-rate pumping test in a nonleaky confined buried channel (strip) aquifer near Estevan, Saskatchewan, Canada (Walton 1970).

Analysis of drawdown and recovery with derivative from single-well pumping test in nonleaky confined aquifer — Analysis of drawdown and recovery data with derivative from a constant-rate single-well pumping test in a nonleaky confined bedrock aquifer (Papadopulos and Cooper 1967). Early-time data show wellbore storage effect before derivative becomes constant (infinite-acting conditions). The low storage coefficient suggests well loss.

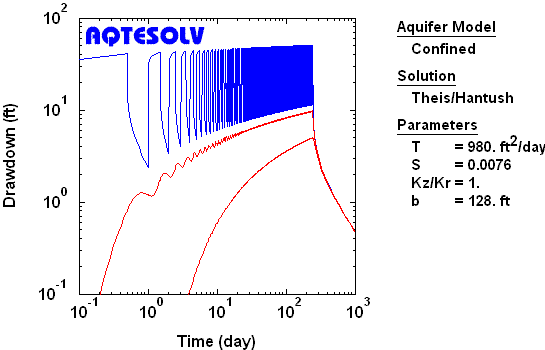

Forward solution with cyclic pumping conditions — Predictive simulation showing drawdown in the pumping well and two observation wells (r=500 and 2000 ft) under cyclic (intermittent) pumping conditions in a nonleaky confined aquifer.

See also: pumping test analysis, recovery test analysis

Pumping Tests in Leaky Confined Aquifers

Composite plot analysis for multiple obesrvation wells in leaky confined aquifer — Estimation of aquifer properties by matching Hantush and Jacob (1955) solution to drawdown data collected in three observation wells during a constant-rate pumping test in a leaky confined aquifer with incompressible aquitard. Theis (1935) solution for a nonleaky confined aquifer shown by red curve (data from USBR 1995).

Distance-drawdown analysis for leaky confined aquifer — Distance-drawdown analysis for three observation wells monitored during a constant-rate pumping test in a leaky confined aquifer (USBR 1995).

See also: pumping test analysis, recovery test analysis

Pumping Tests in Unconfined (Phreatic) Aquifers

Analysis of pumping test in unconfined aquifer using derivative analysis — Analysis using Neuman (1974) model of drawdown (squares) and derivative (crosses) data measured in an observation well during a constant-rate pumping test in an anisotropic water-table aquifer near Fairborn, OH, USA (Lohman 1972).

Analysis of pumping test in water-table aquifer with noninstantaneous drainage — Analysis of a constant-rate pumping test in an anisotropic unconfined aquifer with noninstantaneous response at the water table (Tartakovsky and Neuman 2007). Data from U.S. Geological Survey research site on Cape Cod, MA, USA (Moench et al. 2001).

Analysis of pumping test in unconfined aquifer including effects of antecedent pumping — Analysis with Neuman (1974) model of drawdown and recovery measured in observation well during constant-rate extraction test in an anisotropic water-table (phreatic) aquifer including residual effect of prior injection test at off-site well.

Composite plot analysis of pumping test in phreatic aquifer — Composite plot analysis of drawdown in two observation wells measured during a constant-rate pumping test in an anisotropic unconfined aquifer near Gironde, France (Neuman 1975).

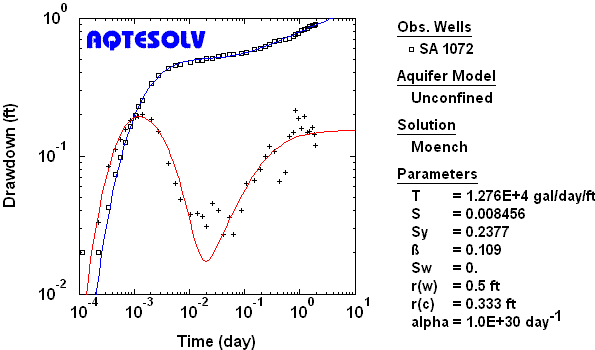

Derivative analysis of pumping test in water-table aquifer including wellbore storage at pumped well — Derivative plot showing drawdown (squares) and derivative (crosses) and analysis using Moench (1997) solution for partially penetrating observation well monitored during a constant-rate pumping test in an anisotropic water-table aquifer near Saratoga, NY, USA (Greenkorn 1983).

See also: pumping test analysis, recovery test analysis

Pumping Tests in Fractured Aquifers

AQTESOLV benchmark for Moench (1984) pumping test solution in a double-porosity fractured aquifer — Moench (1984) solution matched to drawdown in pumped well (squares) and observation well (crosses) measured during a constant-rate pumping test in a double-porosity fractured aquifer; data from Nevada Test Site, USA in Moench (1984).

See also: pumping test analysis, recovery test analysis

Slug Tests

Overdamped slug test in confined aquifer — Analysis of overdamped multi-well slug test in a confined aquifer using KGS Model (Hyder et al. 1994); data from Butler (1998).

Underdamped slug test with frictional well loss is hight-K aquifer — Analysis of underdamped slug test in small-diameter well with frictional well loss in a high-K aquifer (Butler 2002).

Slug test in well screened across water table — Analysis of slug test data exhibiting double straight-line effect in well screened across the water table using Bouwer and Rice (1976) method.

See also: slug test analysis

Constant-Head Tests

Constant-drawdown test in confined aquifer — Estimation of aquifer properties by matching Jacob and Lohman (1952) type-curve solution to discharge data from a constant-drawdown test in a nonleaky confined aquifer (data from Lohman 1972).

Recovery analysis from constant-drawdown test in leaky confined aquifer — Aquifer properties estimated by matching Hantush (1959) solution to recovery data following a constant-drawdown test in a leaky confined aquifer (data from Lohman 1972).

See also: constant-head test analysis

Groundwater Mounding

Groundwater Mound Beneath Rectangular Recharge Area Using Hantush (1967) Solution — Analysis of water-table rise (groundwater mound) beneath a rectangular recharge basin using Hantush (1967) solution in AQTESOLV.

See also: water-table mounding
